Descriere Produs

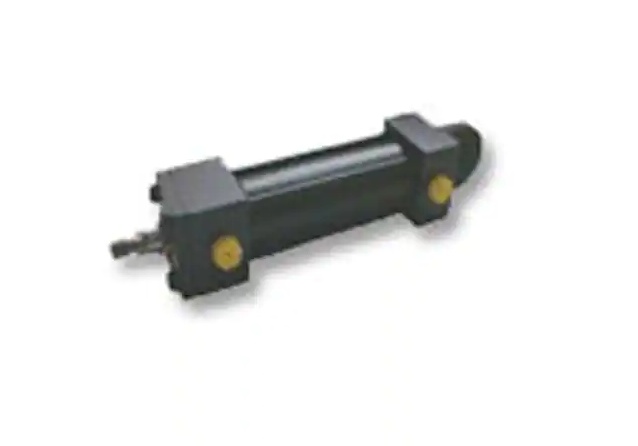

Cilindri hidraulici pentru presiuni de până la 70 bari:

MAXIMUM OPERATING PRESSURE: 70 bar
MINIMUM BORE DIAMETER: 25.4 mm, 1 inch
BORE DIAMETER: 203.2 mm, 8 inch
MINIMUM ROD DIAMETER: 12.7 mm, 1/2 inch
MAXIMUM ROD DIAMETER: 139.7 mm, 5.1/2 inch
MAXIMUM STROKE LENGTH: 5000 mm
MINIMUM OPERATING TEMPERATURE: -46 °C
MAXIMUM OPERATING TEMPERATURE: 150 °C
MOUNTING TYPE: 15
CYLINDER ACTION: Single/Double Acting
PORT TYPE: BSPP, Metric, NPTF
PISTON TYPE: Cast iron rings, Lipseal
ROD END TYPE: 3
ROD END THREAD TYPE: Metric, UNF
NUMBER OF ROD SIZES PER BORE SIZE: 9
